Scope & Instrument Storage
Endoscope Storage Cart
A rolling cabinet that keeps eight reprocessed endoscopes protected, ventilated and ready for the next case, with HEPA filtration and 405nm clean-wave lighting to SGNA and GI industry standards.
Also available
Overview
Proper endoscope storage is essential for maintaining cleanliness, organization, and compliance with infection control standards. Raspberry Med's Endoscope Storage solutions are built from durable materials in a compact design that protects equipment while improving workflow efficiency.
Dimensions & specifications
Overall dimensions: 38.75"W x 28"D x 77.75"H
- Holds 8 endoscopes
- Hanging up to 63" as standard, up to 77" with optional roller brackets
- FDA approved silicone padded back wall and nitrile soft-grip scope holders
- HEPA filter and 405nm clean wave lighting in compliance with SGNA | GI industry standards
- No-maintenance hinged acrylic doors
- Key lock or optional electronic keypad lock
- 5" locking casters
- Lightweight all-aluminum frame
- HEPA filter standard

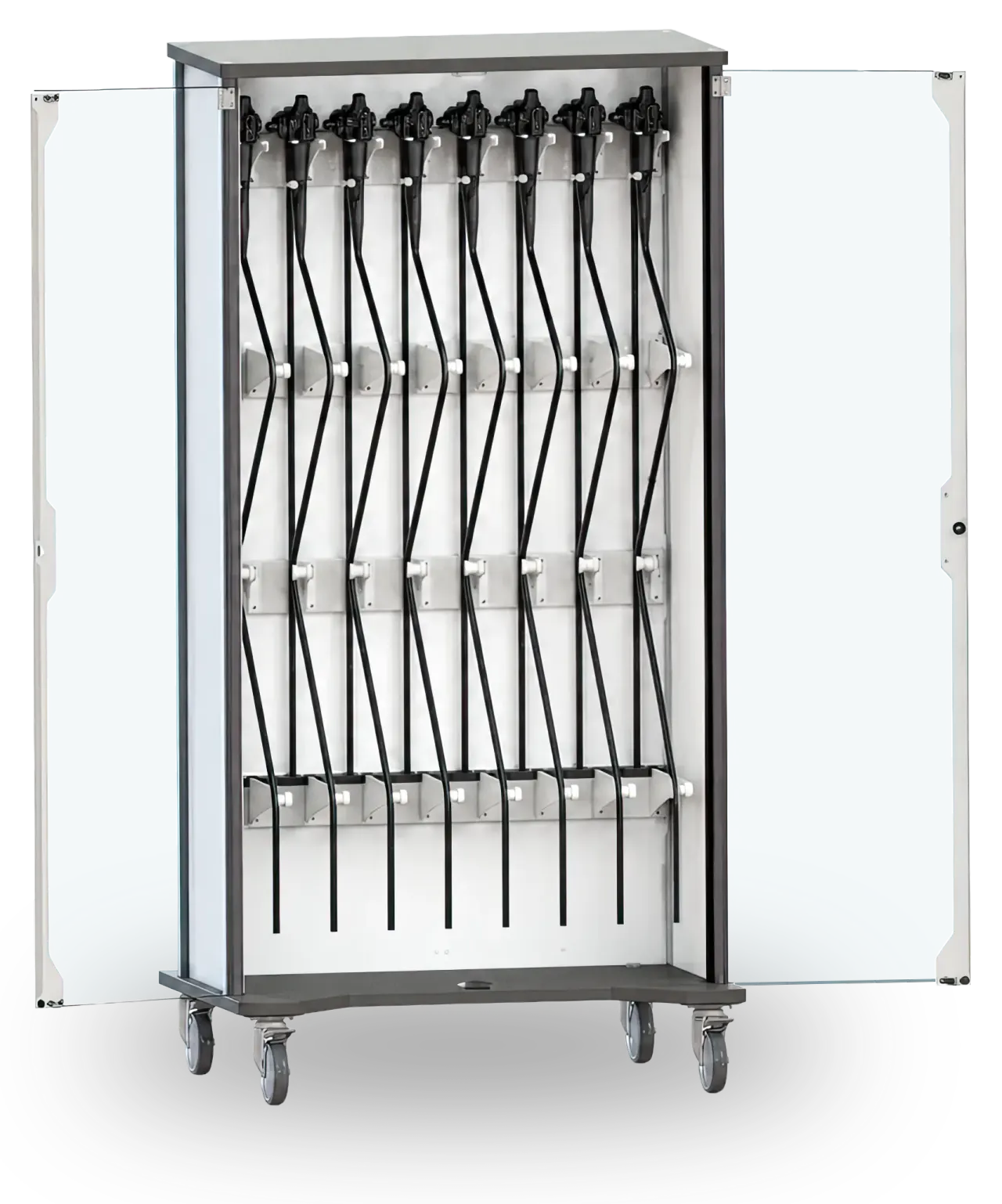

Endoscope Storage Cart
Features
Eight scopes hang in filtered, lit air behind clear doors, so a scope is inspected without being touched, on a frame that rolls to where it is needed.
HEPA Filtration
A HEPA filter is standard, keeping the air around a reprocessed scope clean.

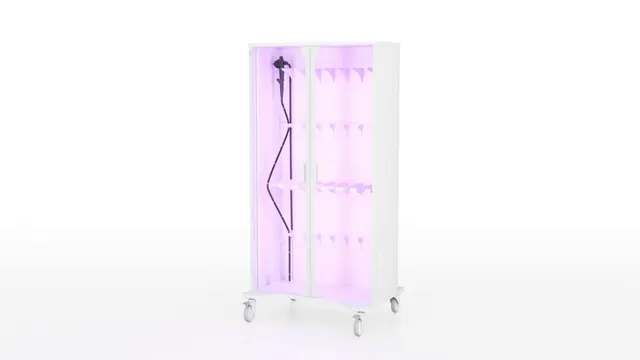

405nm Clean-Wave Lighting
Continuous 405nm lighting, in compliance with SGNA and GI industry standards for scope storage.
Soft-Grip Holders
FDA approved silicone padding on the back wall and nitrile soft-grip holders keep a hanging scope from being marked.
Hinged Acrylic Doors
No-maintenance hinged acrylic doors: a quick visual inspection without opening the cart.
Key or Keypad Lock
A key lock as standard, with an electronic keypad lock available.
5" Locking Casters
A lightweight all-aluminum frame on 5" locking casters, for a room that changes.
Specs
The Endoscope Storage Cart holds eight scopes on an aluminum frame that rolls on 5" locking casters.
- Overall dimensions
- 38.75"W × 28"D × 77.75"H
- Capacity
- 8 endoscopes
- Hanging length
- 63" standard, 77" with roller brackets
- Frame
- Lightweight all-aluminum
- Doors
- Hinged acrylic, no maintenance
- Air and light
- HEPA filter, 405nm clean wave lighting
- Locks
- Key, optional electronic keypad
- Casters
- 5" locking
Start a project
Built to your configuration.
Drawers, locks, finishes and accessories are specified per order. Send us what your team needs and we will come back with options, pricing and a lead time for the Endoscope Storage Cart.
