Scope & Instrument Storage
Endoscope Wall Cabinets
Wall-hung cabinets in eight sizes that keep six to twenty reprocessed endoscopes protected, ventilated and in view behind a full-length acrylic door, with HEPA filtration and 405nm clean-wave lighting to SGNA and GI industry standards.
Also available
Overview
Proper endoscope containment is essential for maintaining cleanliness, organization, and compliance with infection control standards. Raspberry Med's Endoscope Containment solutions are built from durable materials in a compact design that protects equipment while improving workflow efficiency.
Sizes
- 26"W x 60"H x 12"D, single row (6 scopes)
- 26"W x 92"H x 12"D, single row (6 scopes)
- 26"W x 60"H x 18"D, double row (12 scopes)
- 26"W x 92"H x 18"D, double row (12 scopes)
- 38"W x 60"H x 12"D, single row (10 scopes)
- 38"W x 92"H x 12"D, single row (10 scopes)
- 38"W x 60"H x 18"D, double row (20 scopes)
- 38"W x 92"H x 18"D, double row (20 scopes)
Features & options
- Aluminum extrusion and panel construction
- Full-length acrylic door allows quick visual inspection for inventory compliance
- HEPA filter and 405nm clean wave lighting in compliance with SGNA | GI industry standards
- All models wall hanging
- Optional slope top
- Drip tray
- Standard key lock with optional push-button electronic lock
Endoscope Wall Cabinets
Features
Six to twenty scopes hang in filtered, lit air behind a full-length clear door, so a scope is inspected without being touched, on a wall the room already has.
HEPA Filtration
A HEPA filter is standard, keeping the air around a reprocessed scope clean.

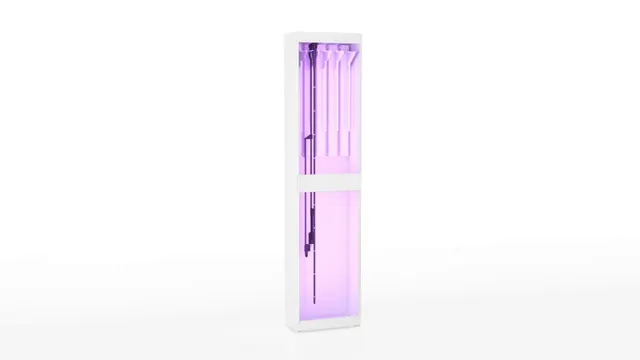

405nm Clean-Wave Lighting
Continuous 405nm lighting, in compliance with SGNA and GI industry standards for scope storage.
Full-Length Acrylic Door
A clear door the height of the cabinet allows a quick visual inspection for inventory compliance without opening it.
Eight Sizes
Two widths, two heights, single or double row: six to twenty scopes on the wall.
Slope Top and Drip Tray
An optional slope top, and a drip tray under the hanging scopes.
Key or Keypad Lock
A key lock as standard, with a push-button electronic lock available.
Specs
Eight wall-hung cabinets: two widths, two heights, single or double row, holding six to twenty scopes.
- Widths
- 26" and 38"
- Heights
- 60" and 92"
- Depths
- 12" single row, 18" double row
- Capacity
- 6 to 20 scopes
- Construction
- Aluminum extrusion and panel
- Door
- Full-length acrylic
- Air and light
- HEPA filter, 405nm clean wave lighting
- Mounting
- Wall hanging, all models
- Options
- Slope top, drip tray
- Locks
- Key, optional push-button electronic
Start a project
Built to your configuration.
Drawers, locks, finishes and accessories are specified per order. Send us what your team needs and we will come back with options, pricing and a lead time for the Endoscope Wall Cabinets.
